ROBOT 100D

Great power in minimal spaces. A demolition robot that eliminates all need for manual demolition work.

WANT OUR CATALOG? ORDER

The ROBOT100D is the perfect solution for safe and efficient demolition in confined spaces. Its combination of power, small size, and light weight allow for work in places where mechanized demolition has previously been impossible.

  • Demolition at a precise point
  • Remote control construction
  • Multiple functions in one
  • MIni bady - gets through the narrowest doorways

Features

Hydraulic hammer model
Optional model

Performance

Slewing speed
8.0 r/min
Transport speed, max.
3.5 km/h
Climbing inclination, max.
30 °

Hydraulic system

Hydraulic system capacity
40L
Pump type
Variable load-sensing
System pressure
16 Mpa
Increased pressure to attachment
21 Mpa
Pump flow 50Hz
40 L/min

Power system

Power technology
Electric motor
Electric motor type
YX3-180M-4
Power*
18.5kw
Recommended fuse size*
Starting device
Soft start/Direct start

Control system

Control type
Signal code
Digital
Transfer
Portable remote control
Range, radio
150m,or customized 2000m

Weight

Machine weight**
1050kg
Recommended attachment weight

Noise level

Sound power level LWA***

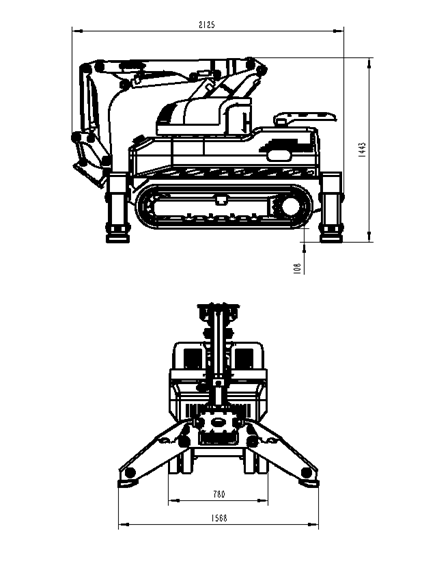

Width min.
780mm
Height min.
1285mm
Vertical reach (incl. breaker)
3950mm
Horizontal reach (incl. breaker)
3750mm
